Arthrimus Wii-HDMI v1.1
The Wii-HDMI v1.1 kit runs on the GCVideo project by ikorb and provides a clean digital to digital HDMI output to the Wii. It supports all of the native output resolutions of the Wii, as well as line-doubled 240p and deinterlaced 480i. The Wii-HDMI’s menus can be controlled using a GameCube controller plugged into controller port 1, or it can also be controlled using an infrared remote. It’s the best way to get video out of the Wii and onto a modern LCD or OLED tv. The quality of the video output is superior even to the HDMI output of the Wii U’s backwards compatibility mode when running Wii games. The Wii-HDMI v1.1 is the ONLY Wii HDMI solution that does NOT disable composite video permanently. The AVE-HDMI (Electron-HDMI) and Retro G.E.M. both require bridging pins on the AV port to force the Wii into 480p. This bridge disables composite video. The Wii-HDMI v1.1 from Arthrimus connects the mode pin to the FPGA allowing control through the OSD making this the only solution that can output composite, component, and HDMI video!- OSD (GC Controller Port 1) - L + R + Y + X (Hold for 3 Seconds)
- OSD (IR Remote) - Play Button
Complete Capacitor Replacement
- Over time, electrolytic capacitors lose their ability to perform as intended. This can have varying effects on performance (none good). The electrolyte, paper and aluminum foil in the capacitor degrade physically and chemically over time. Aging capacitors can cause a wide range of issues and in extreme cases can leak electrolytic fluid onto the PCB (again, not good). All electrolytic capacitors have been removed and replaced with high temperature (105C rated), long life replacements.
Arctic Thermal Pads
- Over time, thermal pads can start to break down leading to higher temperatures and eventual failure. The old stock thermal pads on this Nintendo Wii console have been replaced with top of the line Arctic thermal pads for optimal performance.
Ultrasonic Cleaning and More!
- This console has been completely disassembled, new housing added, shielding and internal mounting pieces run through an industrial ultrasonic cleaner, and DVD drive cleaned and serviced! Please note, while these housings are new, there are some minor blemishes from the factory.

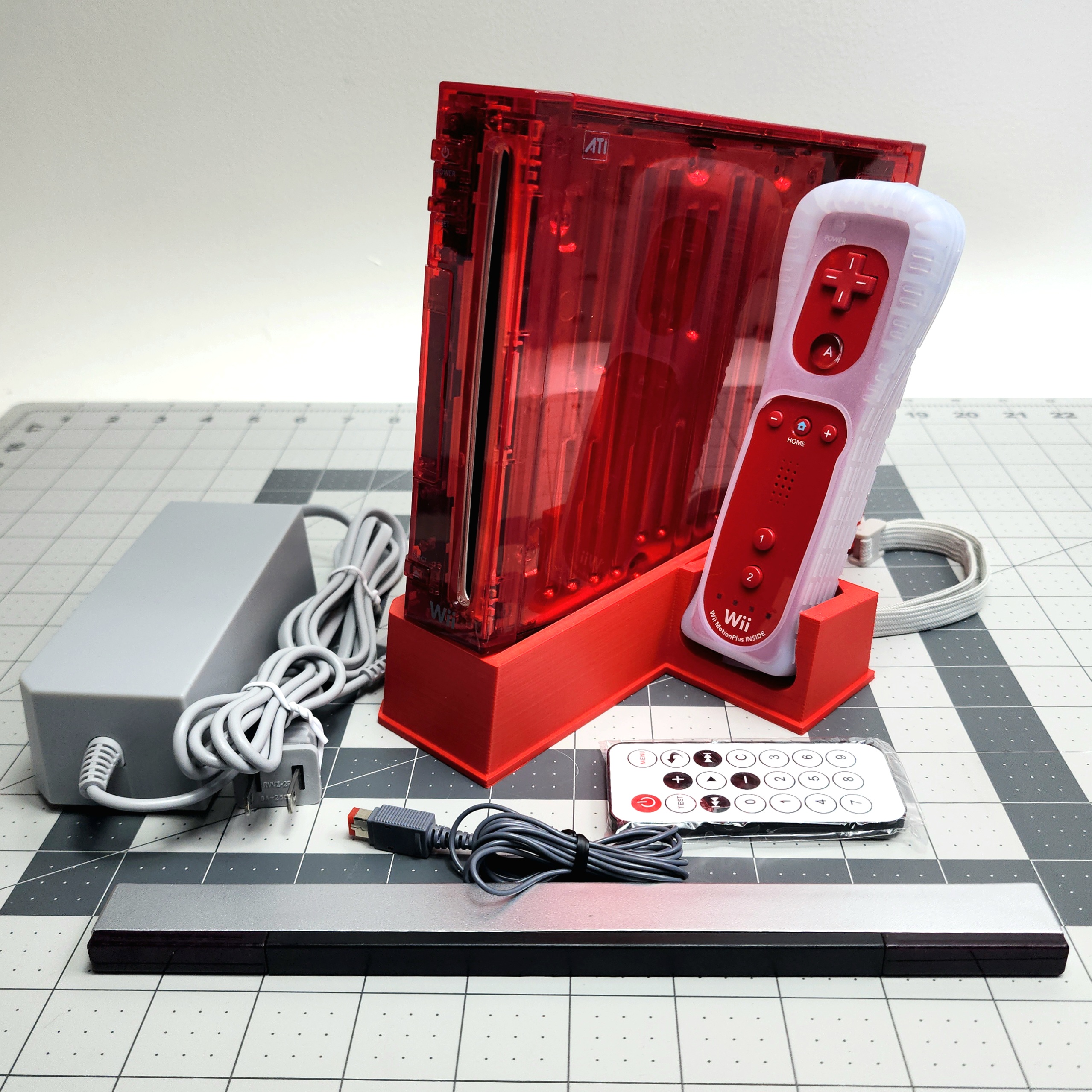

Included Items
1x Nintendo Wii w/ Wii-HDMI
1x Nintendo Wii Remote (Red)
1x Nintendo Wii Remote Protective Cover and Wrist Strap
1x Nintendo Wii Power Supply
1x HDMI to HDMI Mini Adapter
1x Nintendo Wii Sensor Bar
1x 32GB SD Card
1x 3D Printed Nintendo Wii Stand
